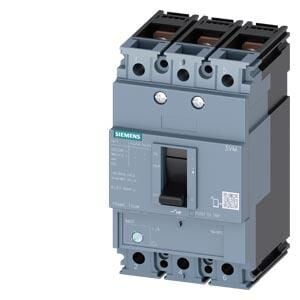

Siemens 3VM1180-4EE32-0AA0 3X80A 36kA Termik Manyetik Şalter

product brand name SENTRON

product designation Molded case circuit breaker

design of the product Line protection

design of the overcurrent release TM220

protection function of the overcurrent release LI

number of poles 3

General technical data

insulation voltage / rated value 800 V

operating voltage / at AC / at 50/60 Hz / rated value 500 V

operating voltage / at DC / rated value 500 V

operating voltage / at AC / rated value 690 V

power loss [W] / maximum 19 W

power loss [W] / for rated value of the current / at AC / in hot

operating state / per pole

6.4 W

mechanical service life (operating cycles) / typical 15 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V 6 000

product feature / for neutral conductors / upgradable/retrofittable

/ short-circuit and overload proof

No

ground-fault monitoring version Without

product function

● communication function No

● other measurement function No

Net Weight 858 g

Current

operational current

● at 40 °C 80 A

● at 45 °C 80 A

● at 50 °C 80 A

● at 55 °C 78 A

● at 60 °C 77 A

● at 65 °C 75 A

● at 70 °C 74 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breaker S

maximum short-circuit current breaking capacity (Icu)

● at 240 V 55 kA

● at 415 V 36 kA

● at 440 V 25 kA

● at 500 V 7 kA

operating short-circuit current breaking capacity (Ics)

3VM11804EE320AA0
