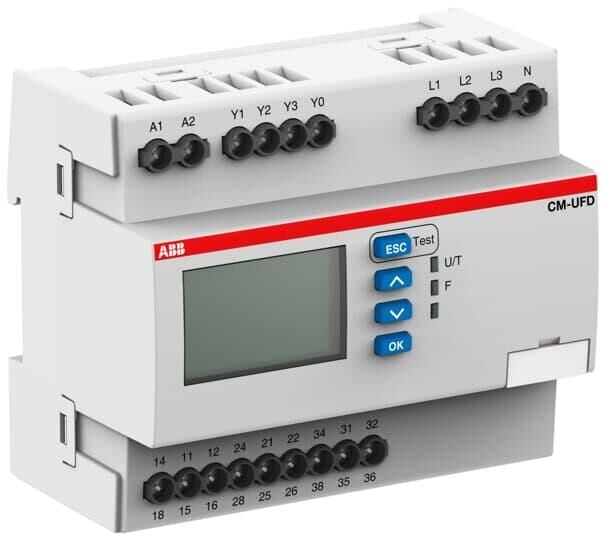

ABB 1SVR560730R3401 CM-UFD.M31 Şebeke Rölesi 24-240V
Ölçüm Aralığı:0 ... 540 V AC
Rated Control Supply Voltage (Us):24 ... 240 V AC/DC
Çıkış:3 c/o (SPDT) contacts
Terminal Türü:Screw Terminals
Rated Operational Current AC-12 (Ie):(230 V) 4 A
Rated Operational Current AC-15 (Ie):(230 V) 3 A
Rated Operational Current DC-12 (Ie):(24 V) 4 A
Rated Operational Current DC-13 (Ie):(24 V) 2 A
Minimum Switching Capacity:24 V
10 mA
Koruma Derecesi:Housing IP20
Terminals IP20
Pollution Degree:3
Kısa Devre Koruyucu Cihazlar:Output Circuit NC - F Type Fuses 10 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:AC-12 50000 cycle
Mechanical Durability:30000000 cycle
Connecting Capacity:Flexible with Ferrule 1x 0.25 ... 4.0 mm²
Flexible with Ferrule 2x 0.25 ... 0.75 mm²
Flexible with Insulated Ferrule 1x 0.25 ... 4.0 mm²
Flexible with Insulated Ferrule 2x 0.25 ... 0.75 mm²
Flexible 1x 0.2 ... 4.0 mm²
Flexible 2x 0.2 ... 1.5 mm²
Rigid 1x 0.2 ... 6.0 mm²
Rigid 2x 0.2 ... 1.5 mm²
Sıkma Torku:0.5 ... 0.6 N·m
Wire Stripping Length:8 mm
Montaj Konumu:1 ... 6
DIN Rayına Montaj:TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Standartlar:VDE-AR-N 4105
VDE-AR-N 4110
VDE-AR-N 4120
Technical UL/CSA
Connecting Capacity UL/CSA:Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-18 AWG
Flexible with Insulated Ferrule 1x 24-12 AWG
Flexible with Insulated Ferrule 2x 24-18 AWG
Flexible 1x 24-12 AWG
Flexible 2x 24-16 AWG
Rigid 1x 24-10 AWG
Rigid 2x 24-16 AWG
Tightening Torque UL/CSA:4.4 ... 5.3 in·lb
Environmental
Ortam Hava Sıcaklığı:Operation -20 ... +60 °C
Storage -25 ... +50 °C
Material Compliance
Conflict Minerals Reporting Template (CMRT):9AKK108467A5658
REACH Declaration:1SVD981001-4501
RoHS Bilgileri:1SVD981027-0001
RoHS Durumu:Following EU Directive 2011/65/EU
Certificates and Declarations
Uygunluk Beyanı - CE:1SVD981027-0002
EAC Certificate:EAC_RU_C-DE.ME77.B.00417-19
TÜV Sertifikası:TUEV_AR-N4110_500810200-2019
TUEV_BDEW_CM-UFD_M31
TUEV_AoC_44254-53768-01
TUEV_BDEW_D8_17_11_44254_017
